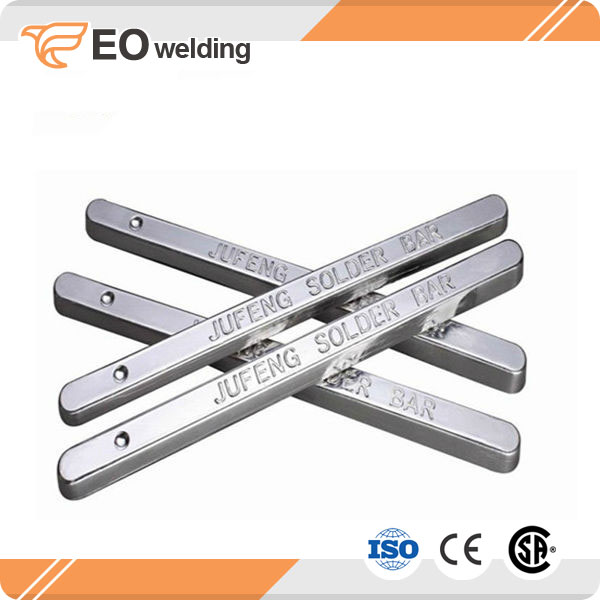

Product Name: ROHS Lead Free Solder bar
Material: Tin Silver Copper alloy
Free Sample: Available
Supply Ability: 8 Ton/Tons per Week
Payment Terms: T/T, L/C, PayPal, West Union
Operating Temperature: | 270℃ |
Color: | Silver Grey |
Shape: | Rectangle of Stick or bar |
Composition: | 99.3% Tin and 0.7% Copper |
Melting point: | 227℃ |
Dimension: | 33cm*2.0cm*1.5cm |
Performance: | Wave and hot dip soldering in solder pot |
Certificate: | SGS and REACH report comply with ROHS |
Length: | 330mm |
Operating Current: | International standard |
Welding Current: | International standard |
Diameter: | 2.0cm*1.5cm |
1.High-performance soldering flux, fast melting speed, good fluidity and quick speed to coat with tin.
2.Lower soldering flux spatter rate during soldering.
3.Soldering flux is evenly distribution with good continuity.
4.Very little smoke and smell gas.
5.Inhibit the cracking of solder joints, copper corrosion and the growth of interface alloy layer.
6.Little residue, no corrosion, high insulation resistance and no-clean solder wire.
7.Application: The products generally used in Lighting, LED, PCB, Precise instruments, Electronic components, Audio and Sound system and wave soldering and hot-dip soldering etc.
Item | ROHS lead free solder bar | ||||||||
Specific gravity | 7.3 | ||||||||
Liquid phase temperature | 227℃ | ||||||||
Solidus temperature | 227℃ | ||||||||
Usage | Suitable for use with standard wave soldering/solder posts | ||||||||
Storage information and warrantee period | Store in a cool, dry, non-corrosive environment. Product warrantee period of 1 years | ||||||||
Chemical composition of solder alloy |
|
|
|
|
|
|
| ||
Metal element | Sn | Cu |
|
|
|
|
|
|
|
Composition(%) | Balance | 0.7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Maximum threshold of impurities in solder alloy |
|
|
|
|
|
|
| ||
Metal element | Bi | Zn | Fe | Al | As | Ag | Cd | Pb | Sb |
Composition(%) | 0.01 | 0.002 | 0.02 | 0.002 | 0.03 | ---- | 0.002 | 0.05 | 0.012 |
Notes: This product and all components are compliant with RoHs and GB/T 20422-2006 | |||||||||
Packaging Details
1. Dimension: 33cm*2.0cm*1.5cm, around 700grams/pc
2. Package: 20kgs/box, 2boxes/carton.
3. Dimension of box: 34.3cm*16cm*7cm.
4. Dimension of carton: 36.5cm*18cm*16cm.
All the cartons are exporting double corrugated carton, wrapped by PVC stripes to avoid damage during transportation.
Delivery Time
10-20 days after receiving the deposit
