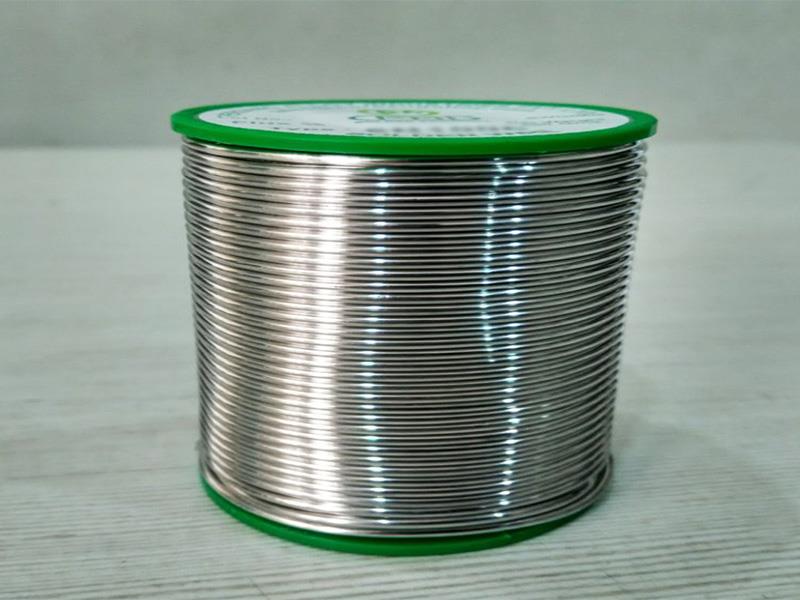

Product Name: resin flux cored wire solder for electric soldering
Material: Tin and Lead
Diameter: 0.5-3.0mm
OEM: Available
Free Sample: Available
Supply Ability: 6 Ton/Tons per Week
Payment Terms: T/T, L/C, PayPal, West Union
Product name | resin flux cored wire solder for electric soldering |
Material | Tin and Lead |
Diameter | 0.5-3.0mm |
Melting Point | 183-280℃ |
Weight | 100-1000g/reel |
Flux Content | 1.8-2.4% |
Shape | Solder Wire |
Color | Silver grey |
Composition | Tin and Lead |
Flux core | 1.8-2.4% Resin flux |
Working tools | Soldering irons and soldering stations |
1. Composition: Tin and Lead
2. Diameter: From 0.5mm to 3.0mm are available.
3. Melting temperature and Working temperature:
Alloy Composition (wt%) | Melting Temperature ℃ | Working Temperature ℃ | Working Method |
Sn63/Pb37 | 183 | 245-255 | Wave Soldering |
Sn60/Pb40 | 183~190 | 250-260 | Hot-Dip Soldering |
Sn55/Pb45 | 183~203 | 255-270 | Hot-Dip Soldering |
Sn50/Pb50 | 183~216 | 260-275 | Hot-Dip Soldering |
Sn45/Pb55 | 183~227 | 270-300 | Hot-Dip Soldering |
Sn40/Pb60 | 183~238 | 280-310 | Hot-Dip Soldering |
Sn35/Pb65 | 183~247 | 290-330 | Hot-Dip Soldering |
Sn30/Pb70 | 183~255 | 295-335 | Hot-Dip Soldering |
Sn25/Pb75 | 183~266 | 300-350 | Hot-Dip Soldering |
Sn20/Pb80 | 183~280 | above 350 | Hot-Dip Soldering |
4. Features:
a) Smokeless, Little splash, Bright and Stable spot.
b) No corrosion, high insulation resistance and no clean.
c) Good wettability and excellent oxidation resistance.
d) Quick melting speed and good fluidity.
5. Specification ---- Tin lead solder
Item | resin flux cored wire solder for electric soldering | ||||||||
Flux content (%) | 1.8-2.4% | ||||||||
Specific gravity | 8.3-10.3 | ||||||||
Melting point | 183-280℃ | ||||||||
Usage | Suitable for use with soldering irons and soldering stations | ||||||||
Storage information and warrantee period | Store in a cool, dry, non-corrosive environment. Product warrantee period of 1 year | ||||||||
Chemical composition of solder alloy |
|
|
|
|
|
|
| ||
Metal element | Sn | Pb |
|
|
|
|
|
|
|
Composition (%) | Balanced | As request |
|
|
|
|
|
|
|
Maximum threshold of impurities in solder alloy |
|
|
|
|
|
|
| ||
Metal element | Bi | Zn | Fe | Al | As | Cd | Cu | Sb | |
Composition (%) | 0.027 | 0.002 | 0.007 | 0.007 | 0.03 | 0.002 | 0.04 | 0.12 | |
Notes: This product and all components are compliant with GB/T 3131-2001 | |||||||||
resin flux cored wire solder for electric soldering application：
LED, PCB, Electronic components, precise instruments and other soldering
Packaging Details
1. Weight in reel: 100g, 125g, 250g, 1LB, 500g, 900g and 1KG/REEL are available.
2. Weight in plastic tube: 12g, 15g, 17g and 20g/pc are available.
All the cartons are exporting double corrugated carton, wrapped by PVC stripes to avoid damage during transportation.
Delivery Time
10-20days after receiving the deposit
Our Company
As a professional Solder products manufacturer, our company is located in China. Manufacturing good quality solder wires and solder bars in competitive factory price.
As the Alibaba assessed Supplier, being more Reliable and Reality.
Free Sample/Freight collected -- Lead free and tin lead solders are available. Welcome OEM with your own brand and package requirements.
Aim to Win-Win business and become friends in the near future.
Factory information please go to "Factory View"
