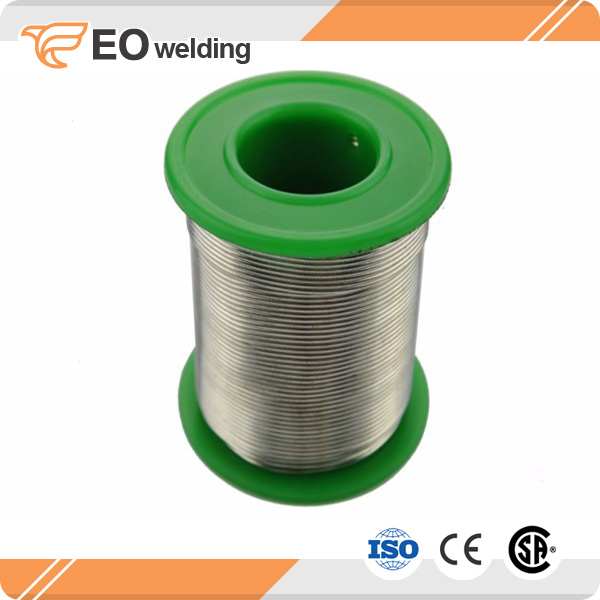

Product Name: rosin flux solder wire for audio and sound system
Material: 63% Tin and 37% Lead
Diameter: 0.5-5.0mm
OEM: Available
Free Sample: Available
Supply Ability: 6 Ton/Tons per Week
Payment Terms: T/T, L/C, PayPal, West Union
Product name | rosin flux solder wire for audio and sound system |
Material | 63% Tin and 37% Lead |
Diameter | 0.5-5.0mm |
Melting Point | 183℃ |
Weight | 100-1000g/reel |
Flux Content | 1.8-2.4% |
Shape | Wire |
Color | Silver grey |
Flux core | Rosin flux |
1. Composition: Tin and Lead
2. Diameter: From 0.5mm to 5.0mm are available.
3. Melting temperature and Working temperature:
Alloy Composition (wt%) | Melting Temperature ℃ | Working Temperature ℃ | Working Method |
Sn63/Pb37 | 183 | 245-255 | Wave Soldering |
Sn60/Pb40 | 183~190 | 250-260 | Hot-Dip Soldering |
Sn55/Pb45 | 183~203 | 255-270 | Hot-Dip Soldering |
Sn50/Pb50 | 183~216 | 260-275 | Hot-Dip Soldering |
Sn45/Pb55 | 183~227 | 270-300 | Hot-Dip Soldering |
Sn40/Pb60 | 183~238 | 280-310 | Hot-Dip Soldering |
Sn35/Pb65 | 183~247 | 290-330 | Hot-Dip Soldering |
Sn30/Pb70 | 183~255 | 295-335 | Hot-Dip Soldering |
Sn25/Pb75 | 183~266 | 300-350 | Hot-Dip Soldering |
Sn20/Pb80 | 183~280 | above 350 | Hot-Dip Soldering |
4. Features:
a) Smokeless, Little splash, Bright and Stable spot.
b) No corrosion, high insulation resistance and no clean.
c) Good wettability and excellent oxidation resistance.
d) Quick melting speed and good fluidity.
5. Specification ---- Audio and sound system solder wire
Item | rosin flux solder wire for audio and sound system | ||||||||
Flux content (%) | 1.8-2.4% | ||||||||
Specific gravity | 7.3 | ||||||||
Melting point | 183℃ | ||||||||
Usage | Suitable for use with standard wave soldering/solder posts | ||||||||
Storage information and warrantee period | Store in a cool, dry, non-corrosive environment. Product warrantee period of 1 years | ||||||||
Chemical composition of solder alloy |
|
|
|
|
|
|
| ||
Metal element | Sn | Pb |
|
|
|
|
|
|
|
Composition (%) | Balanced | 37.2 |
|
|
|
|
|
|
|
Maximum threshold of impurities in solder alloy |
|
|
|
|
|
|
| ||
Metal element | Bi | Zn | Fe | Al | As | Cd | Cu | Sb | |
Composition (%) | 0.027 | 0.002 | 0.007 | 0.007 | 0.03 | 0.002 | 0.04 | 0.12 | |
Notes: This product and all components are compliant with GB/T 3131-2001 | |||||||||
rosin flux solder wire for audio and sound system application：
Widely used in PCB board soldering by soldering irons
Solder Wire Packaging---- Audio and sound system solder wire
1. Weight is Reel: 50g, 100g, 125g, 250g, 1LB, 500g, 900g, 1kg/reel are available.
Package for 50g, 100g and 125g/reel solder wire: 100 reels/box, 2 boxes /carton
Package for 250g/reel solder wire: 40 reels/box, 2 boxes /carton
Package for 1LB and 500g/reel solder wire: 20 reels/box, 2 or 4 boxes/carton
Package for 900g and 1kg/reel solder wire: 10 reels/box, 2 or 4 boxes/carton
2. Weight in Tube: 12g, 15g, 17g and 20g/tube are available.
Package: 500pcs or 600pcs/carton
Shipping:
1. Samples are shipped by Express or by Air.
2. Orders are shipped by Sea or by Air.
Our Services
1. Reply the inquiry within 24 hours.
2. As a Manufacturer, we can offer much more competitive price than trade company.
3. Good quality and professional suggestion.
